Machinespeed* max 5000 spm
Stitchtype 401 + 504
Number of needles 2
Feedtype differential feed
Differential ratio 1:0.7 - 1:2
Presserfoot lift up to 7 mm
Overedge bight 2 to 5 mm
Needletype B-27
Number of treads 4 or 5

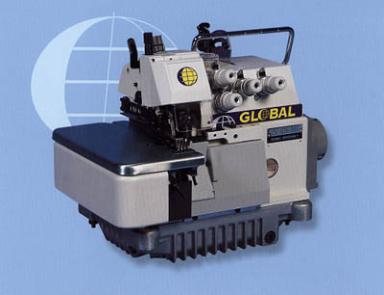

OV 630 - High
speed two needle and safety stitch overlock machines with front top feed
combined with differential feed.
* Machinespeed depends on type of operation and/or materials to be sewn
Global
OV 630 Series
OV 616-636-555 5-thread heavy duty top feed.

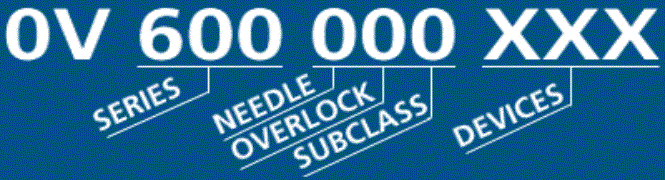

SERIES
NEEDLE
OVERLOCK
SUBCLASS
DEVICES
604
614 616
634 636
distance
width
0 - normal
5 - extra heavy
7 - metering
8 - binder
9 - ruffler
max 5000 spm
